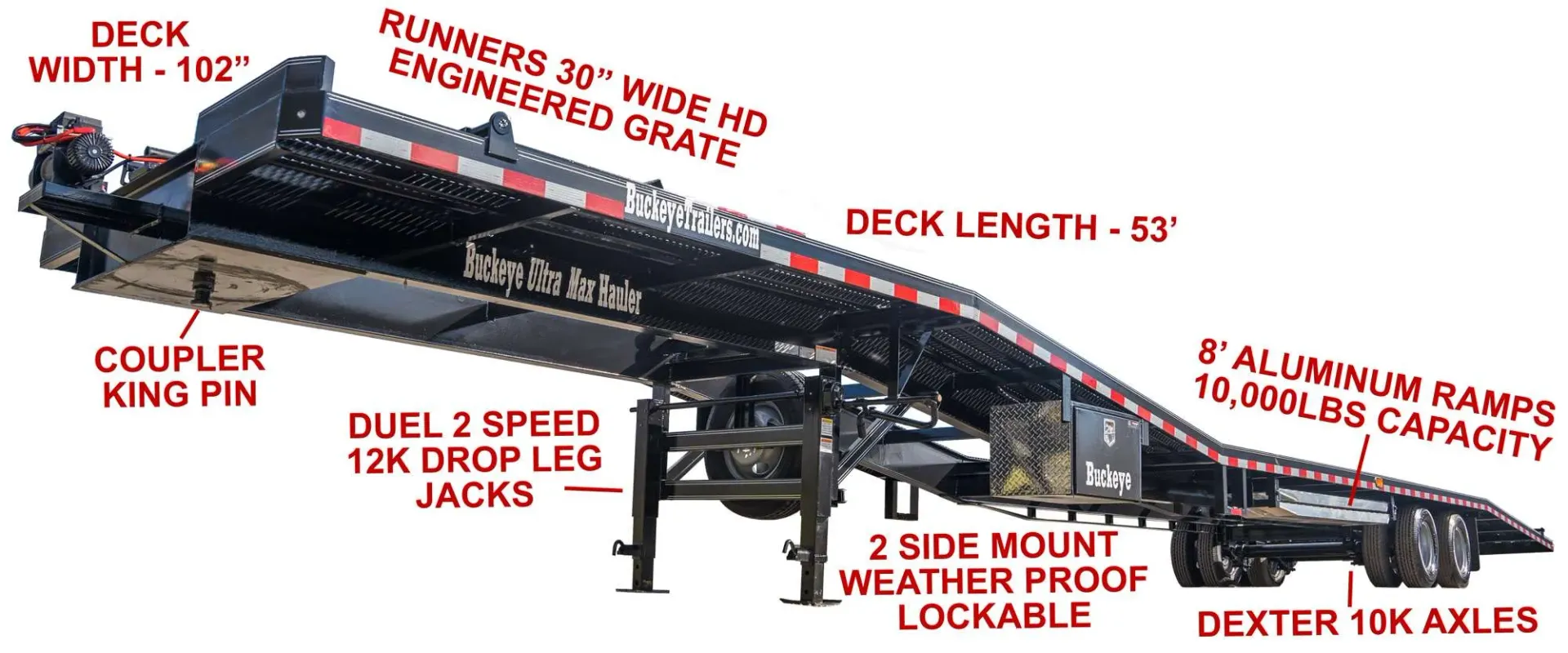

The Buckeye ULTRA MAX Hauler 53′ trailer is a rugged hot shot car hauler with its I-beam frame, 36″ deck height, 24,000 GVRW, and 102″ wide deck.
Are you tired of leaving those tall, heavy, big money loads behind? We thought so! This trailers superior design allows for tall vans and also accommodates most low clearance cars.
We start at the rear of the trailer with an 11′ dovetail and a bumper height of 22″-24″ giving a slow rise loading angle. This lower deck is 36″ high and 23′ of flat, pure money making deck space! Moving on to the upper deck you have got a 20″ rise in 8′ leveling off with an 11′ upper deck.
Designed with the same unmatched quality and integrity you have come to expect from the Buckeye Hauler brand, this model comes equipped with all the unbeatable standard features as its little brother, the MAX Hauler 53′ – which includes aluminum ramps and two speed jacks. Below is a full list of standard equipment.
STANDARD OPTIONS
- Deck Length – 53’
- Deck width – 102”
- Empty weight – 8,000lbs
- GVWR – 24,000
- Runners – HD engineered grate 30” wide
- Axles – HD Made in USA Dexter 10K oil bath with 5 YEAR warranty
- Landing gear – duel 2 speed 12k drop leg jack
- Coupler – King pin hook up
- Tires – 235-80-R16 load range E
- Wheels – Steel 16” 8”on6.5” bolt pattern
- Spare Tire and wheel – 235-80-R16 Load range E mounted on steel rim
- Ramps – 8’ aluminum ramps 10,000lbs capacity
- Toolbox – 2 side mount weather proof lockable
- Lights – DOT approved all LED lighting
- Safety equipment – DOT approved reflective tape solid down the whole trailer length, breakaway kit and battery box.
- Warranty – 1 year structural frame standard although not needed
- Finish – Automotive grade two part epoxy primer with two epoxy topcoats
Optional
10′ Aluminum Ramps
An additional foot can help reach that perfect load angle. Making your day more profitable with a lower clearance angle.
12,000lb Winch Kit – wireless remote included
A great addition to any Buckeye Trailer.
Toolbox – weatherproof, locking
Who can’t use more storage?
14 Ply Tire Upgrade
For additional peace of mind.
10 Ply Spare Tire
Add this spare tire for extra peace of mind on the road. Of course, all Buckeye Hauler Trailers come stock with one spare tire.
14 Ply Spare Tire
Add this upgraded spare tire for continued peace of mind for the long haul. Of course, all Buckeye Hauler Trailers come stock with one spare tire.
Trailer Hauling Package
A great addition to any Buckeye Hauler Trailer!
Package includes:
- Center Rail
- 3 ball towers
- 12,000lb winch kit
