This trailer comes standard with a single 12K drop leg jack. The Dual drop leg jack upgrade is available upon request.

The Max Light 48’ 12k! Single axle low profile design!

Buckeye Trailer and Fab Co LLC continues to set the bar in the commercial trucking industry!

This model is equipped standard with a single Dexter HD 12,000lbs axle with electric over hydraulic disc brakes! A standard GVWR of 12,000 to 14,000 lbs and has many options available!

Built for MAXIMUM efficiency and EXTREME durability, this unit is sure to help bring that American dream to life!

This trailer has many advantages, to list a few. First, this trailer is equipped with our extreme duty suspension! Second, the hydraulic disc brakes provide the optimal stopping power, and you will have much less brake maintenance on this trailer than the electric brake systems! Third, the large axle bearings and oil bath hubs provide a much longer-lasting axle! Less on maintenance! Less on tolls! = More on profit$!

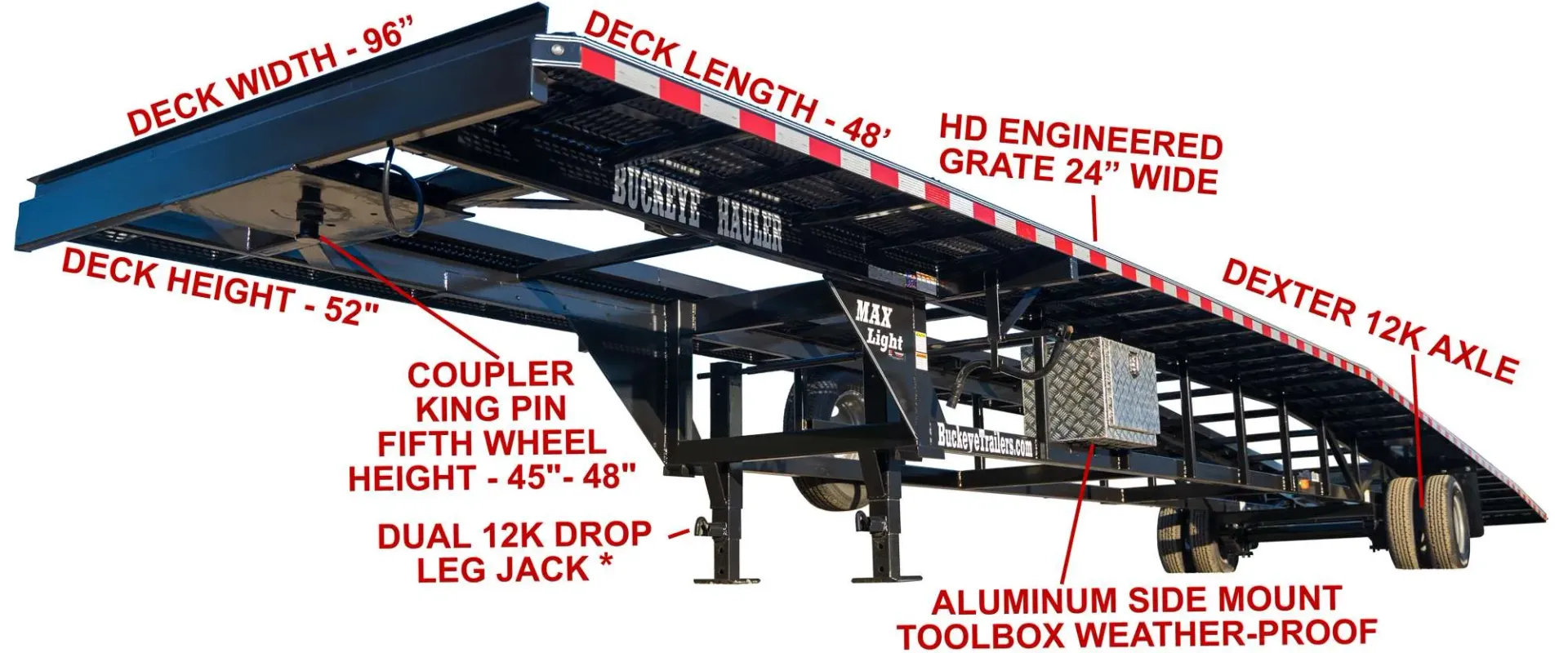

STANDARD FEATURES:

• Deck Length – 48’
• Deck width – 96”
• Empty weight – 5,100lbs
• Deck Height – 52″
• Pay load capacity – 7,000lbs to 11,700lbs
• GVWR – 12,000lbs standard. (can be up to 15,000 GVWR with no upgrades needed)
• Runners – HD engineered grate 24” wide – upgradeable
• Axle – HD Made in USA Dexter 12K with 5 YEAR warranty
• Landing gear – single 12k drop leg jack – upgradable
• Coupler – King pin with a fifth wheel height of 45″ to 48″
• Tire – 235-80-R16 load range E
• Wheels – Dual steel 16” rim, 8 on 6.5” bolt pattern
• Spare Tire and wheel – 235-80-R16 Load range E mounted on HD aluminum rim
• Ramps – 9’ aluminum ramps 10,000lbs capacity
• Toolbox – Aluminum side mount weather-proof with lock
• Lights – DOT approved all LED lighting
• Safety equipment – DOT approved reflective tape solid down the whole trailer length, breakaway kit and battery box.
• Warranty – 1 year structural frame standard although not needed
• Finish – Automotive grade two part epoxy primer with two epoxy topcoats

Optional



10′ Aluminum Ramps

An additional foot can help reach that perfect load angle. Making your day more profitable with a lower clearance angle.

 12,000lb Winch Kit – wireless remote included

A great addition to any Buckeye Trailer.

 Toolbox – weatherproof, locking

Who can’t use more storage?

14 Ply Tire Upgrade

For additional peace of mind.

10 Ply Spare Tire

Add this spare tire for extra peace of mind on the road. Of course, all Buckeye Hauler Trailers come stock with one spare tire.

14 Ply Spare Tire

Add this upgraded spare tire for continued peace of mind for the long haul. Of course, all Buckeye Hauler Trailers come stock with one spare tire.

 102″ Wide Deck Option

Increase your hauling power with this upgrade!

 30″ Wide Runners

This upgrade will give you plenty of room to haul over the road.

Trailer Hauling Package

A great addition to any Buckeye Hauler Trailer!
Package includes:

• 102″ wide deck
• Center Rail
• 3 ball towers
• 12,000lb winch kit
